Customized Four Column Hydraulic Bending Brake TPB Series Supplier

Hydraulic four-column series punching machine, stamping table product standard specifications. Due to small horsepower, large output, optimum bearing, workpiece pressing, forming, riveting, punching, cutting and spring preloading assembly line... etc. It can also be used to meet the needs of customers, such as vibration, top material, side holes, disc type, etc. In addition to the standard specifications, it can also be changed according to customer needs, please specify when ordering.

Contact

Back

add to Inquiry Cart	Model	Capacity (tons)	Stroke (mm)	Descending Speed (m/min)	Pressing Speed (m/min)	Ascending Speed (m/min)	Motor Power (HP)	Open Height (mm)	Table Size (mm)
add to Inquiry Cart	Model	Capacity (tons)	Stroke (mm)	Descending Speed (m/min)	Pressing Speed (m/min)	Ascending Speed (m/min)	Motor Power (HP)	Open Height (mm)	Table Size (mm)	TPB-5	5	300	5.2	2.5	4.8	3	360	270 x 380
	TPB-10	10	300	4.5	2.2	4.6	5	360	270 x 380
	TPB-15	15	300	3.1	1.4	2.7	5	390	340 x 450
	TPB-20	20	300	2.1	1.1	2.3	5	390	340 x 450
	TPB-30	30	350	5.8	1.0	7.4	7.5	470	350 x 500
	TPB-50	50	350	4.6	0.4	1.0	10	500	450 x 600
	TPB-80	80	400	3.7	0.3	6.9	15	580	550 x 750
	TPB-100	100	400	4.0	0.2	7.1	20	580	550 x 750

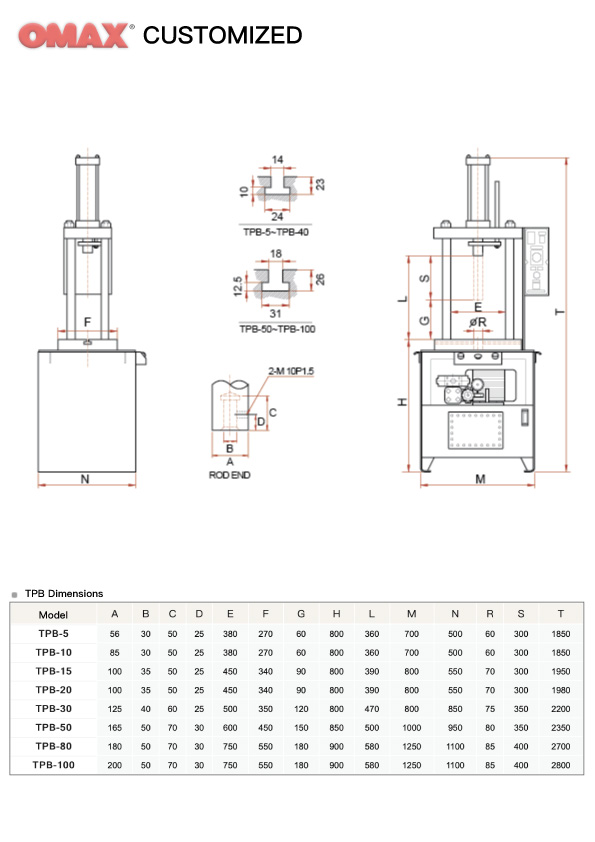

4 Column Punching Machine (TPB)
