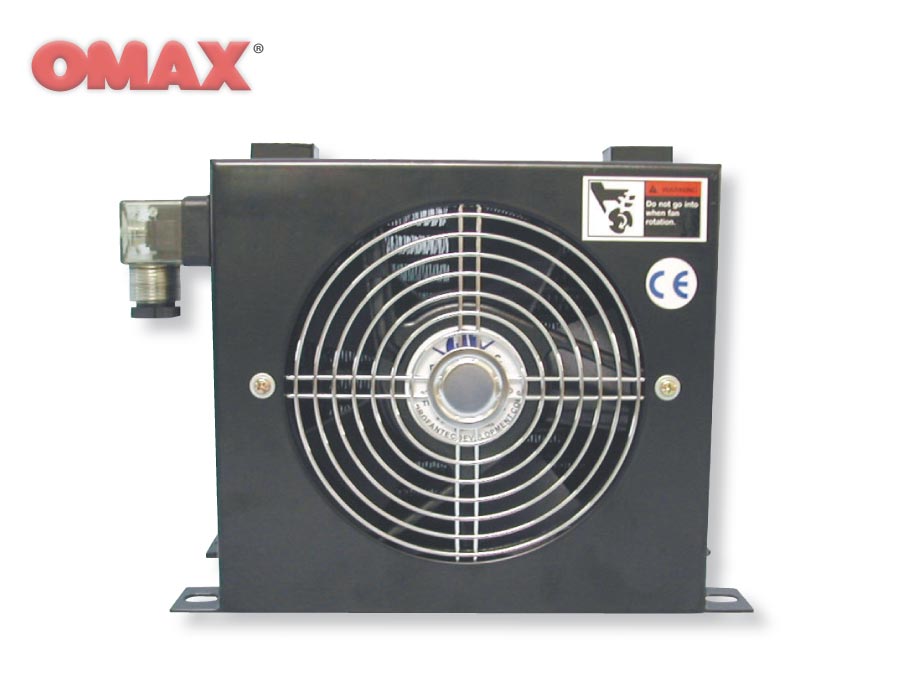

Heat Exchanger (AW0607)

＊ ECO Heat-Exchanger ＊ Material : Aluminum Alloy ＊ Thematerial and the grade are same as the European Brand. ＊ The fans and the motors of OMAX, are beyond the normal industrial standard, because the coolers would be working in high-temperature environment. ＊ Class H insulation consists of materials, maximum hot spot temperature allowed 180°C. ＊ Coil number of turns are 15% more than standard, could work on 50Hz. ＊ Small size motors equipped with power-off system, to prevent the fire from happening. ＊ DC motors, Ingress Protection Rating IP68, Life time 20,000 hours. (Optional) ＊ Best way to use: "Hydraulic Presses Kidney Loop", "Off-line Recirculation Cooling"
Contact
Back
add to Inquiry Cart Model Standard Voltage (V) Frequency (Hz) Power (W) Current (A) Rotation Speed (R.P.M.) Air Flow (m3/h) IP Level Noise (dB(A))

AW0607-CA3

 1Ø / 380V 50 / 60 30 / 25 0.16 / 0.14 2580 / 3450 457 / 553 54 42 / 48

AW0607-CA2

 1Ø / 230V 50 / 60 45 / 37 0.24 / 0.21 2580 / 3450 457 / 553 54 42 / 48

AW0607-CA1

 1Ø / 115V 50 / 60 45 / 37 0.5 / 0.6 2580 / 3450 457 / 553 54 42 / 48

AW0607-CD1

 DC12 - 12 1.0 2700 445 67 40

AW0607-CD2

 DC24 - 12 0.5 2700 445 67 40
