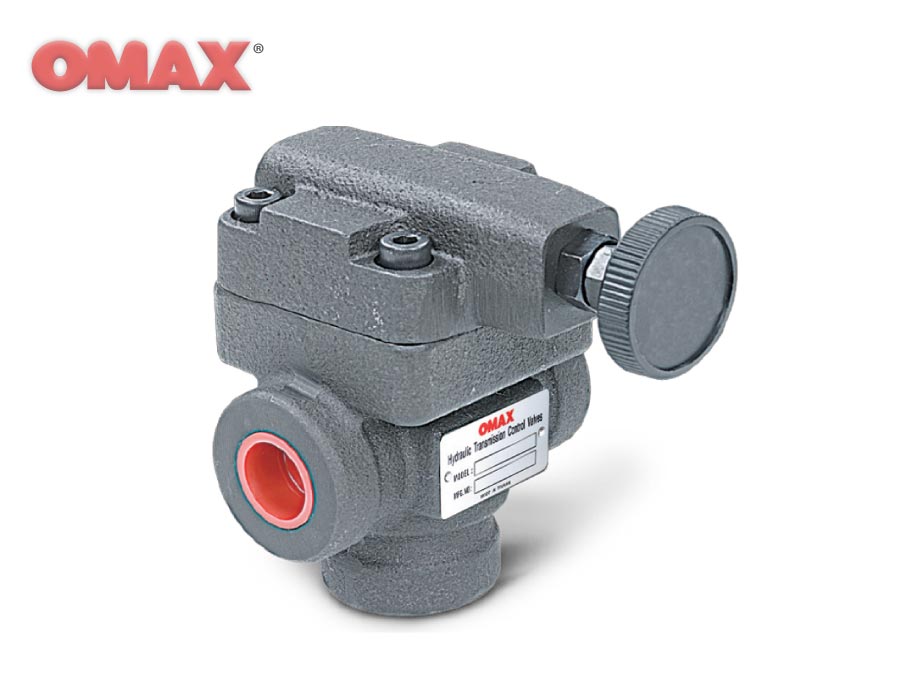

Pilot Relief Valve (RV-T)

A hydraulic pilot relief valve regulates pressure within a hydraulic system by diverting excess fluid when preset pressure limits are reached, ensuring safety and optimal performance. It protects hydraulic components from excessive pressure that can cause system failure or damage. It opens when system pressure exceeds the preset limit, diverting fluid to a reservoir to reduce pressure.



APPLICATIONS

Common in industrial machinery, construction equipment, and hydraulic systems requiring pressure control.

Contact
Back
add to Inquiry Cart Model Valve Size Mounting Type Pressure Adjusting Type Type Max. Flow

RV-03T

 3/8" Threaded Connections 1: 7~70 / 2: 35~140 / 3: 70~210 / 4: 140~315 kg/cm2 BK: Linked Type / 13: Fixed Type 100 L/min

RV-04T

 1/2" Threaded Connections 1: 7~70 / 2: 35~140 / 3: 70~210 / 4: 140~315 kg/cm2 BK: Linked Type / 13: Fixed Type 100 L/min

RV-06T

 3/4" Threaded Connections 1: 7~70 / 2: 35~140 / 3: 70~210 / 4: 140~315 kg/cm2 BK: Linked Type / 13: Fixed Type 200 L/min

RV-10T

 1-1/4" Threaded Connections 1: 7~70 / 2: 35~140 / 3: 70~210 / 4: 140~315 kg/cm2 BK: Linked Type / 13: Fixed Type 400 L/min

What is a Hydraulic Pilot Relief Valve?

A hydraulic pilot relief valve regulates pressure within a hydraulic system by diverting excess fluid when preset pressure limits are reached, ensuring safety and optimal performance.



Features

  • High-pressure capacity
  • Adjustable pressure settings
  • Compact, durable design



Functions

The valve releases excess pressure, preventing system overload and component damage.



Applications

Common in industrial machinery, construction equipment, and hydraulic systems requiring pressure control.



How Does Relief Valve Work?

It opens when system pressure exceeds the preset limit, diverting fluid to a reservoir to reduce pressure.



Why Need a Relief Valve?

It protects hydraulic components from excessive pressure that can cause system failure or damage.



How to Choose Suitable Relief Valve

Consider maximum pressure, flow rate, system requirements, and adjustability.



Advantages of OMAX Relief Valve

- OMAX offers durable relief valves with customizable pressure settings, available in various configurations.

- With maximum working pressures up to 350 bar (5000 psi).

- These valves are 100% made in Taiwan, ensuring reliable performance and competitive pricing.
